tubes

Castello by ARaymond is specialised in the production of tubes for the pneumatic and industrial markets, in different fields of application from compressed air to chemical fluid transfer.

The engineering polymers used for the production of our tubes allow excellent mechanical and physical properties as well as outstanding chemical resistance. In 2009, Castello by ARaymond introduced on the market tubes made with an innovative polymer called Polyamide 10.12 (PA10.12) as a valid alternative to tubes extruded in PA12.
In 2010, Castello by ARaymond has developed a new co-polymer named COPA 12 for the production of tubes combining high flexibility with burst pressure resistance. These tubes can replace those in Polyamide 12 and Polyurethane.

C.BEST – PA12 HIPHL

C.BEST tubes are made of Polyamide 12 (PA12), a multipurpose material, derived from Oil.
C.BEST tubes comply with DIN 73378 and DIN 74324 norms.
C.BEST tubes combine excellent mechanical and chemical resistance from -40°C to +130°C.

GO TO DATASHEET

C.BEST – PA12 HL

C.Best tubes made of Polyamide 12 are fulfilling the requirements of the standard DIN 73378 / 74324. Rigid Tubes in PA12 HL are generally used for greasing and misting systems thanks
to excellent mechanical and chemical properties.

GO TO DATASHEET
c-best pa12 phl

C.BEST – PA12 PHL

C.BEST flexible tubes made of Polyamide PA12 PHL are recommended for industrial and automotive applications. Tubes in PA12 PHL can be used to safely transfer compressed air and fluids in harsh environments thanks to their remarkable mechanical and chemical properties.

GO TO DATASHEET

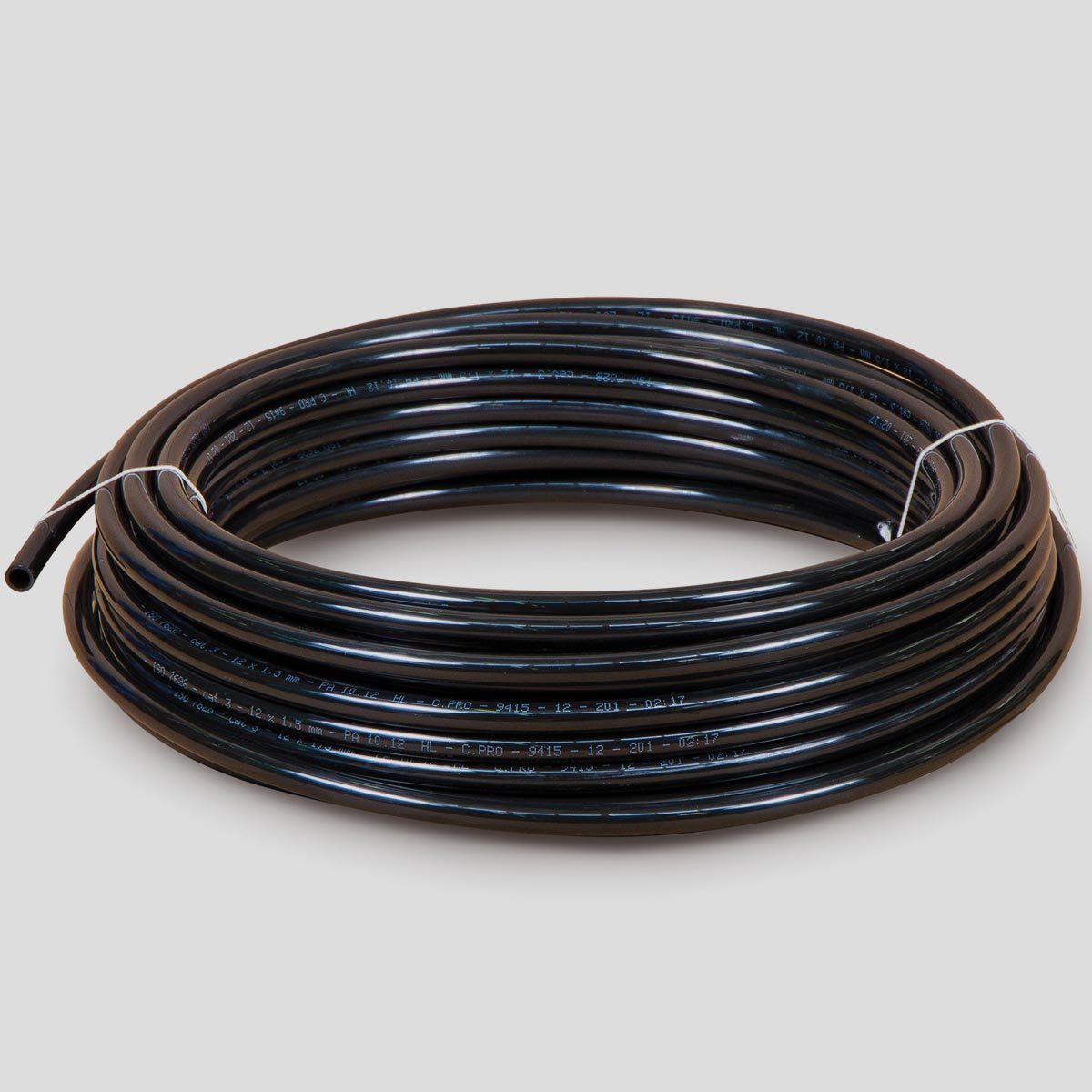

C.PRO – PA 10.12 HL

PA10.12 tubes have been certified TÜV SÜD and fulfillall requirements of ISO 7628/2010. They can easily replace the PA11 and PA12 for the industrial and automotive applications offering the similar chemical and mechanical properties. Tubes in PA10.12 HL are suitable for high pressure applications such as centralized greasing and water misting.

GO TO DATASHEET
c-pro pa10.12 phl

C.PRO – PA 10.12 PHL

PA10.12 tubes have been certified TÜV SÜD and fulfillall requirements of ISO 7628/2010. They can easily replace the PA11 and PA12 for the industrial and automotive applications offering the similar chemical and mechanical properties. Tubes in PA10.12 HL are suitable for high pressure applications such as centralized greasing and water misting.

GO TO DATASHEET
c-bio pa11 hl

C.BIO – PA 11 HL

PA11 HL C.BIO tubes are used in both industrial automation and automotive applications and they are made using Polyamide 11, a polymer produced from a renewable source (castor oil). PA11 HL rigid tubes are recommended for their resistance to high pressure.

GO TO DATASHEET
c-bio pa11 phl

C.BIO – PA 11 PHL

PA11 PHL C.BIO tubes are used in both industrial automation and automotive applications and they are made using Polyamide 11, a polymer produced from a renewable source (castor oil). These flexible tubes can resist to impact at cold temperatures.

GO TO DATASHEET
c-star

C.STAR

This very innovative tube combines in one product the best properties of polyurethane and Polyamide. C.STAR tubes are made of an exclusive recipe of co-polymers and offer high flexibility, excellent bending radius, good chemical resistance, excellent temperature resistance.

GO TO DATASHEET
c-eco

C.ECO

Low density Polyethylene tubes can be used within a restrictive range of temperatures between -40°C and +60°C. C.ECO tubes made in Polyethylene for pneumatic applications are extruded in low-density grade (LD PE).

GO TO DATASHEET
c-flex 95

C.FLEX 95

Flexible C.FLEX 95 tubes are made of polyurethane polyether base shore 95 A. They offer a good resistance to microbiological attack and are suitable for non-drinkable water contact.

GO TO DATASHEET
